Alloy 424J42
Category：Expansion alloy» | Date：2023-03-17
Brief introduction:
It’s Nickel-Iron controlled-expansion alloy with Ni42% nominal value.
It has low and nominally constant coefficient of thermal expansion from room temperature to about 300℃.
It is a sealing structural material widely used in the electric vacuum industry.Used for semiconductor lead frames in integrated circuits, bi-meatl thermostat strip, thermostat rods,for ceramic-to-metal seals with alumina ceramics and various glass-to-metal seals.
Main specifications:
Chinese grade UNS UK Werkstoff Nr. Germany Russia France 4J42 K94100 Nilo42 1.3917 Vacodil42,Nilo42 42H N42 Chemical composition under YB/T5235-2005 standard:
Grade chemical composition,% C P S Mn Al Si Co Ni Fe MAX 4J42 0.05 0.02 0.02 0.8 0.1 0.3 1 41~42.5 Remainder Remarks：If require adjustments for some chemical compositions, pls consult with us.
Tensile strength under YB/T5235-2005 standard:
delivery condition Tensile strength of strip ,N/mm2 Soft ＜590 Hard ＞700 Typical average linear expansion coefficient value α,10-6/℃
Grade 20℃~100℃ 20℃~200℃ 20℃~300℃ 20℃~400℃ 20℃~450℃ 20℃~500℃ 20℃~600℃ 4J42 5.6 4.9 4.8 5.9 6.9 7.8 9.2 Main product types:

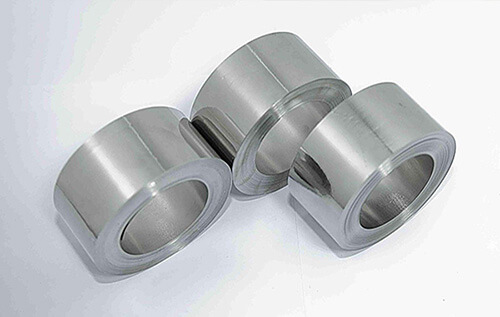

wire,rod, bar,strip, plate/sheet,tube,rectangular tube,square tube, ring,forging
