3J53
Category：Elastic alloy» | Date：2023-03-17
Brief introduction:
3J53 is a constant elastic alloy, which can obtain high elasticity and strength after aging, has a low modulus of elasticity temperature coefficient in the range of -60-100 °c and is resistant to corrossion.
It’s used for manufacturing diaphragms, bellows, bellows, springs and other elastic components in the instrument industry.
Chemical composition under YB/T5256-2011 standard:
Grade chemical composition,% C P S Si Mn Cr Ni Ti Al Fe MAX 3J53 0.05 0.02 0.02 0.8 0.8 5.2~5.8 41.5~43 2.3~2.7 0.5~0.8 Remainder Remarks：If require adjustments for some chemical compositions, pls consult with us.
Norminal mechanical properties at room temperature:
Grade Condition Modulus of elasticity E Tensile strength Rm N/mm2 Hardness Hv 3J53 cold worked+Aged 176400-191100 ≥1225 350-450 Main product types:

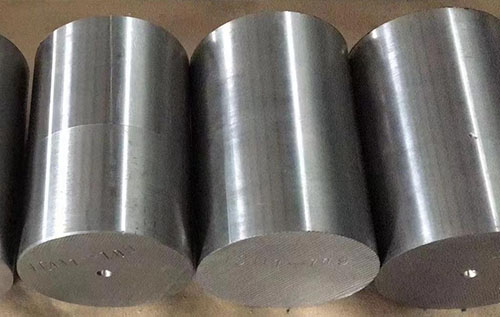

wire,rod, bar,strip.
